میگر دیجیتال سی ای ام مدل DT6605
قیمت اصلی: ۴۵۰.۰۰۰.۰۰۰ ریال بود.۳۹۰.۹۰۰.۰۰۰ ریالقیمت فعلی: ۳۹۰.۹۰۰.۰۰۰ ریال.
5
آیتم فروخته شده در 3 روز
18
نفر در حال مشاهده این محصول هستند!
توضیحات

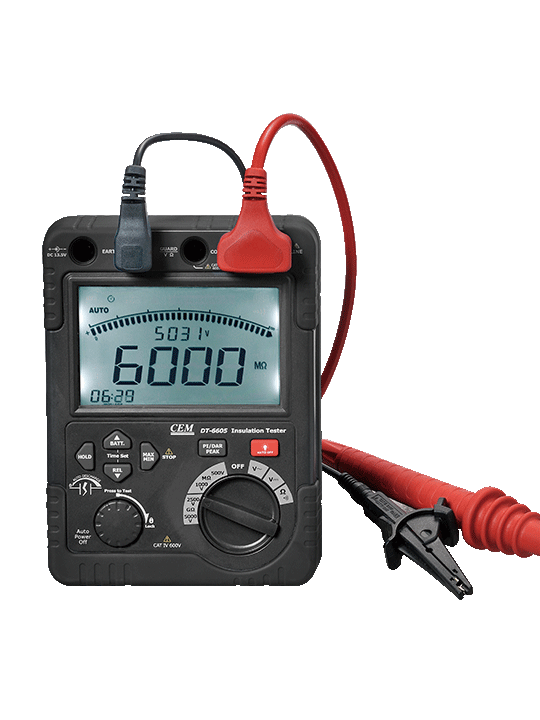

DT-6605
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
Wide range measurements from 500V to 5000V and up to 60GΩ.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
| Specifications | ||||||
| Function | Insulation resistance | Voltage | Resistance | |||
| Range | 500V | 1000V | 2500V | 5000V | AC/DCV | |
| Measuringrange (Auto ranging) | ۰~۶.000MΩ 6~۶۰.00MΩ 60~۶۰۰.0MΩ 600~6000MΩ |
۰~۶.000MΩ 6~۶۰.00MΩ 60~۶۰۰.0MΩ 600~6000MΩ |
۰~۶۰.00MΩ 60~۶۰۰.0MΩ 0.۶~۶.000GΩ 6~۶۰.00GΩ |
۶۰~۶۰.00MΩ 60~۶۰۰.0MΩ 0.۶~۶.000GΩ 6~۶۰.00GΩ |
۰~۶۰۰.0V (۵۰~1kHz) |
۰~۶۰۰.۰Ω 600~۶۰۰۰Ω |
| Accuracy | ±۵%rdg ±3dgt ; ±۲۰% (>6GΩ or more) | ±۱.۵%rdg ±5dgt | ±۱.۵%rdg ±10dgt | |||
| Short Circuit Current | ۱.3mA approx | – | ||||
| Rated test Current (at load Resistance) |
1mA-1.2mA 0.5MΩ |
1mA-1.2mA 1MΩ |
1mA-1.2mA 2.5MΩ |
1mA-1.2mA 5MΩ |
– | |
| Open circuit voltage | 500VDC/+20%-0% | 1000VDC/+20%-0% | 2500VDC/+20%-0% | 5000VDC/+20%-0% | – | |
| Continuity check | Buzzer sounds at 50Ω | |||||
| Display | ۶۰۰۰ Counts | |||||
| Current consumption | About 1000mA (During measurement) | 25mA approx. | ||||
| Withstand Voltage | 5320V AC for 5 seconds | |||||
| Safety standard | IEC 61010-1 CAT IV 600V Pollution Degree 2 | |||||
| Power supply | DC12V : R14 x 8 | |||||
| Dimensions | ۱۹۸ ( L) x 148 (W) x 86 ( D) mm | |||||
| Weight | 1438g approx. | |||||
| Accessories | Test leads, Instruction Manual and 120V/250V AC adaptor | |||||
